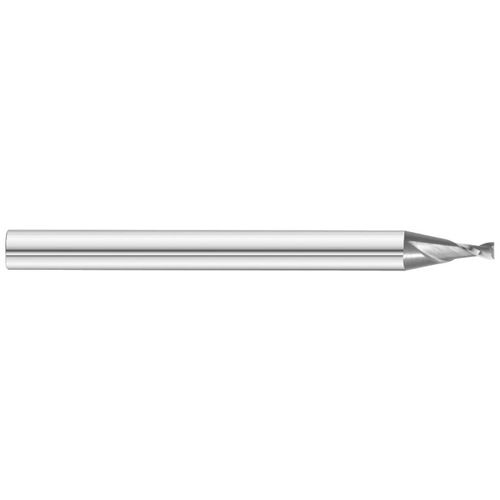

‎Square End Mill; 0.019″ Dia. × 0.028″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3215SM

Item # FT8532361

UNSPSC: 27112803

Brand: Fullerton Tool

MFG#: 32361

Quantity Available

Cutting Diameter (DC)

0.019″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/8″

End Shape

Square

Depth of Cut Maximum (APMX)

0.028″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

‎1-1/2″

Length Group

Short|Stub

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

Uncoated

Decimal Equivalent

0.019″

Flute Count (NOF)

Series/List #

3215SM

Flute Helix Angle (FHA)

30 Degrees

Product Features

Remarks

‎

Special Sub Miniature Design

Square or Ball End

2 Flutes

30° Helix

1.5 x Diameter and 3 x Diameter Flute Length

.1250 Inch h6 Shank Diameter

1.5000 Inch Overall Length Single End

Right Hand Spiral

Right Hand Cut

Standard Uncoated

Inch Based Tools

Center Cutting

Dura Carb II for Enhanced Shock Resistance

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +/- . 0005″ / +/–0.02mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

UNITED STATES

Shipping Info

Package Weight

.021
