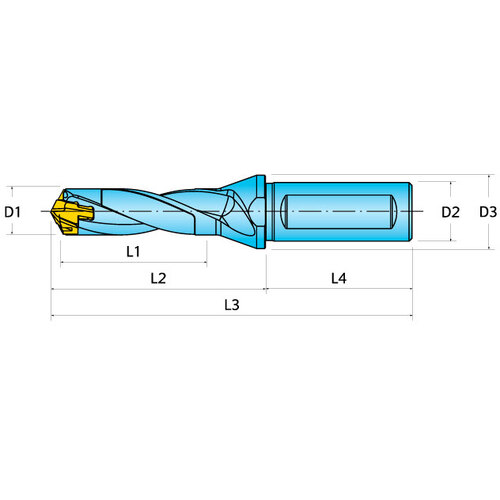

| Usable Length (LU) | 2.95″ | Shank Length (LS) | 2.36″ |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 25 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.9843″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 1.0197″ | Body Material | Steel |
| Functional Length (LF) | 3.939″ | Flange Diameter (DF) | 1.65″ |
Product Features
| Family Description | Coolant Through Holds +.002/-.000 on Hole Diameter | Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.565
