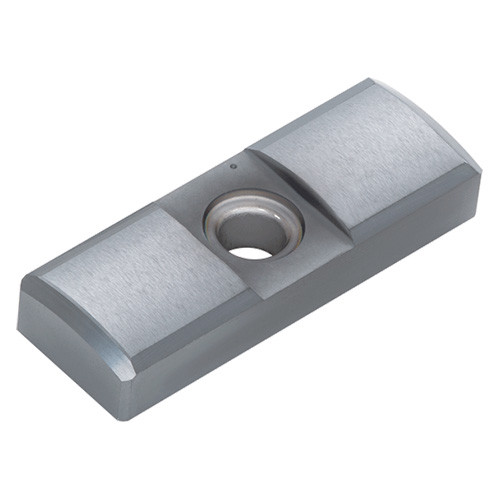

GP06-100 F1122
| Overall Length (OAL) | 0.787″ | Body Material | Steel |
| Measurement Type | Inch | Corner Radius (RE) | 0.3937″ |
| Width (W) | 0.236″ | Grade | F1122 |
| Thickness (H) | 0.118″ | Cutting Edge Material | Carbide |
| Application | | Accessories | BTA system | General Drilling | Gundrill | | Coating | AlTiCrN |
Product Features

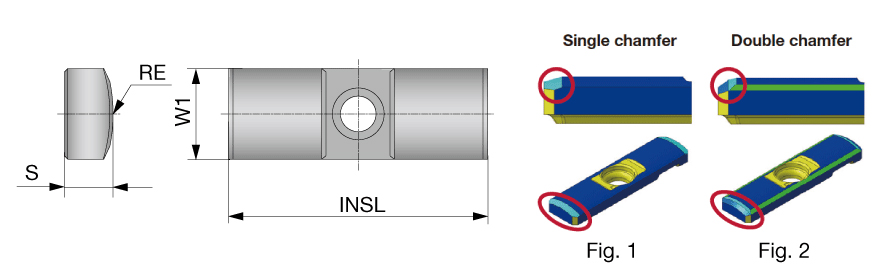

| Family Description | Guide pad (Single chamfer, Double chamfer) | Country of Origin | Japan |
| Remarks | For applicable drill, click on "More Info". |
Shipping Info
Additional Fees and Notes
0
Package Weight
0
Related Documentation

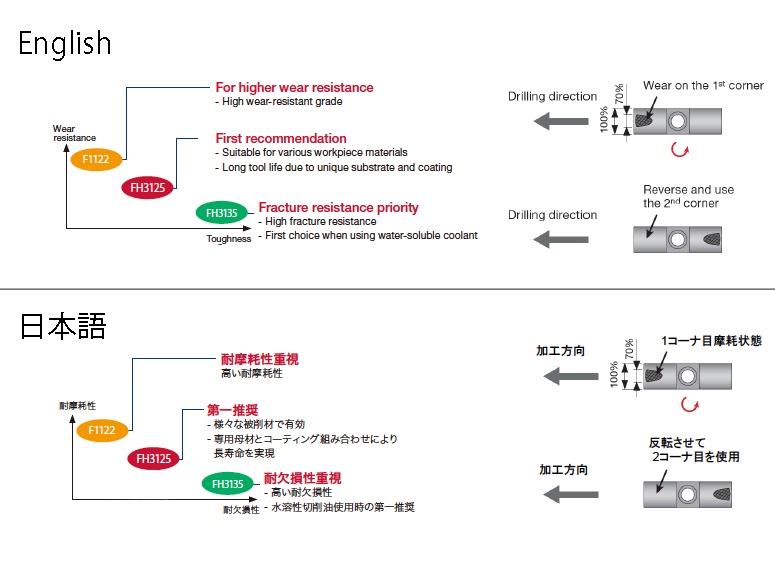

Guide pads are subject to wear, like inserts @- The guide pad can be used on two end faces. @- When the first face wears up to 70% of its width, reverse the guide pad to use the second face. @- Replace with a new guide pad when the second face wears out.
