ETLN25M019W25.0F044R02

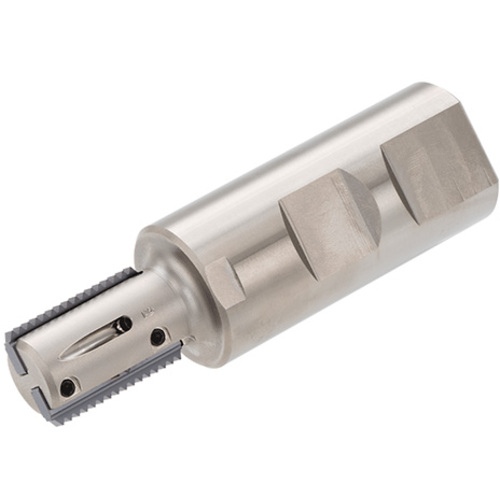

Indexable thread milling cutters, long edge

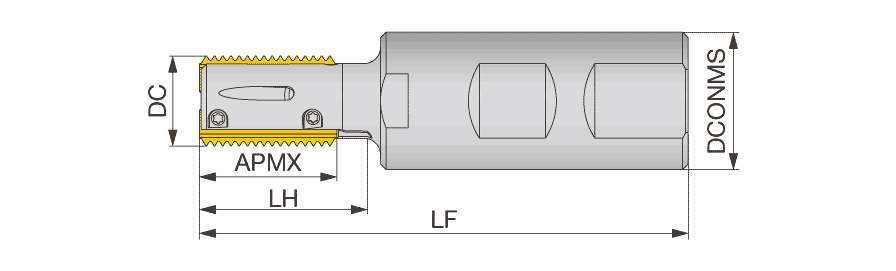

| Cutting Diameter (DC) | 0.748″ | Application | | Ext. Thread Milling | Int. Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Tool Type | Indexable thread mills |
| Depth of Cut Maximum (APMX) | 0.984″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.094″ | Cutting Item Count (CICT) | 2 |
| Master Insert Identification (MIID) | LN25DIR1.5ISO | Head Length (LH) | 1.732″ |
| Body Material | Steel |
Product Features
| Family Description | Indexable thread milling cutters, long edge | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.631
