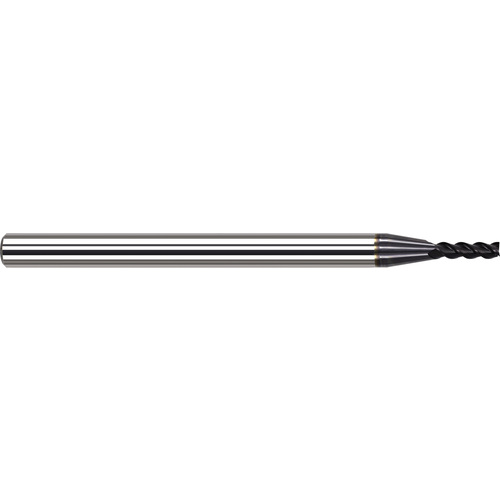

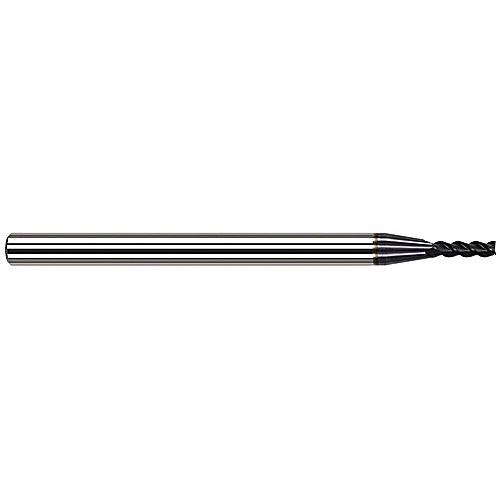

Variable Helix End Mills for Free Machining Steels - 0.0250″ Cutter Diameter × 0.0750″ Length of Cut Carbide Square End Mill for Free Machining Steels, 3 Flutes, AlTiN Coated
SQ End Mill; 0.025″ Dia. × 0.075″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.025″ | Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.075″ | Applicable Material | | Steel | |
| Overall Length (OAL) | 1-1/2″ | Length Group | 3D |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.025″ |
| Coating | AlTiN | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
