TISU1457F1500-3

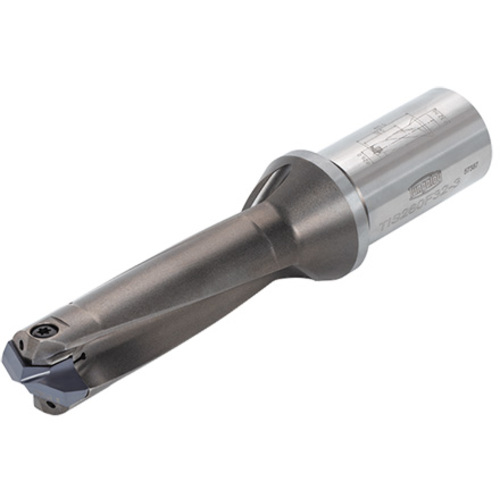

DrillForceMeister TIS L/D=3 Indexable head drill

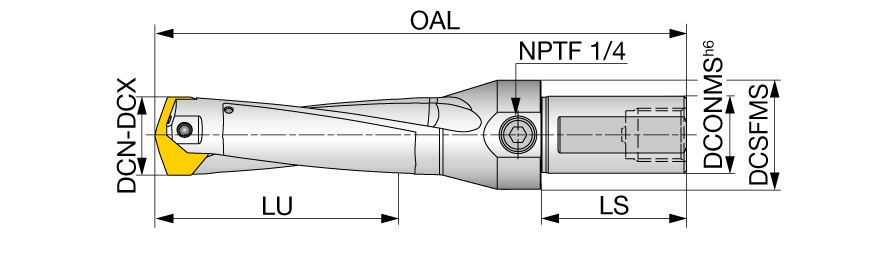

| Usable Length (LU) | 4.598″ | Shank Length (LS) | 2.677″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | DRILL - L/D = 3 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Master Insert Identification (MIID) | SMP370 |
| Insert Seat Size Code (SSC) | 37 | Point Length (PL) | 0.265″ |
| Cutting Diameter Minimum (DCN) | 1.457″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.492″ | Flange Diameter (DF) | 2.165″ |
| Overall Length (OAL) | 9.76″ |
Product Features
| Family Description | DrillForceMeister TIS L/D=3 Indexable head drill | Country of Origin | SOUTH KOREA |
| Remarks | Note: An overall length (OAL) differs based on each head geometry. |
Shipping Info
Package Weight
3.968
