| Protruding Length (LPR) | 10.6 mm | Grade | AH725 |
| Insert Seat Size Code (SSC) | T7 | Coating | TiAlN |
| Body Material | Carbide | Cutting Edge Material | Carbide |
| Measurement Type | Metric | Application | | Reaming | |
| Cutting Diameter (DC) | 19.05 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Flute Count (NOF) | 6 |
Product Features

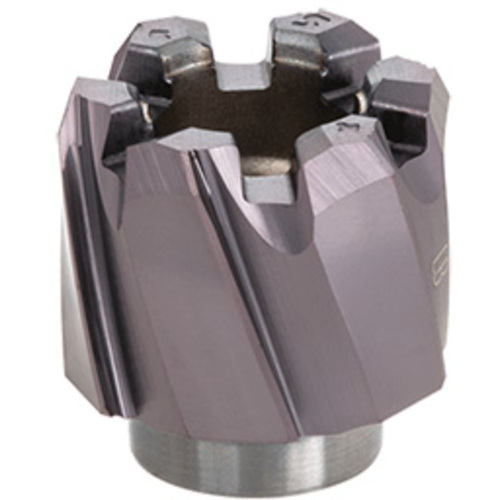

| Family Description | Reaming heads with left hand flute for through holes (H7 hole tolerance) | Country of Origin | SOUTH KOREA |
| Remarks | DC: 10.000, DC tolerance: +0.012 / +0.008, Hole diameter tolerance (H7): +0.015 / 0 DC: 11.000 18.000, DC tolerance: +0.015 / +0.011, Hole diameter tolerance (H7): +0.018 / 0 DC: 18.001 30.000, DC tolerance: +0.017 / +0.013, Hole diameter tolerance (H7): +0.021 / 0 DC: 31.001 32.000, DC tolerance: +0.021 / +0.016, Hole diameter tolerance (H7): +0.025 / 0 |
