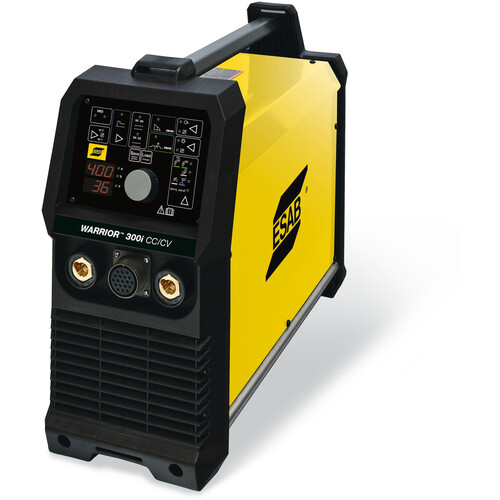

‎ESAB WARRIOR 300i Multi-Process Power Source, 208-230/400/460 VAC

Item # ES020558102558

Brand: Esab

MFG#: 0558102558

Type

Multi-Process

Phase

1 Phase / 3 Phase

Output Current

400 A

Duty Cycle

MIG: 230A at 60%, 1 ph | 300A at 60%, 3 ph; Stick: 230A at 60%, 1 ph | 300A at 60%, 3 ph; TIG: 230A at 60%, 1 ph | 300A at 60%, 3 ph

Input Current

‎208-230/400/460V

Included

Power Source | 10 ft input lead | two male Dinse connectos 50 mm | Operator's manual

AMP Rating

‎10-300 A (1 ph)/10-400 A ( 3 ph)

Standards

IP23S

Product Features

Remarks

Adjustable inductance control for arc stability and spatter control plus optimized selection modes for CO2 and mixed gases for MIG welding
Adjustable hot start control, adjustable arc force control and optimized selection modes for E6010 vertical-up, vertical-down and E7018 electrodes for optimum Stick welding
Lift TIG start provides TIG arc starting without the use of high frequency
Special arc gouging mode for optimum air carbon arc gouging
Weighs less than 54 lbs. (24.5 kg), ideal for on-site and portable welding applications

Country of Origin

Germany

Package Weight
