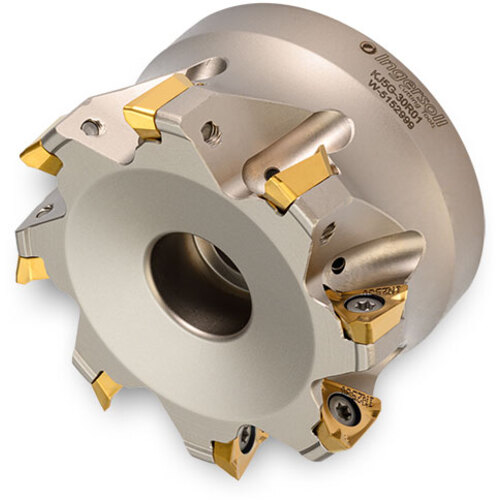

KJ5G-30R01
Insert corners: .015″, .031″, .062″, .094″ R
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC/DCX) | 3″ | Ramping Angle Maximum (RMPX) | 0.8 Degrees |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.41″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
Product Features
| Family Description | Insert corners: .015″, .031″, .062″, .094″ R | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.005
