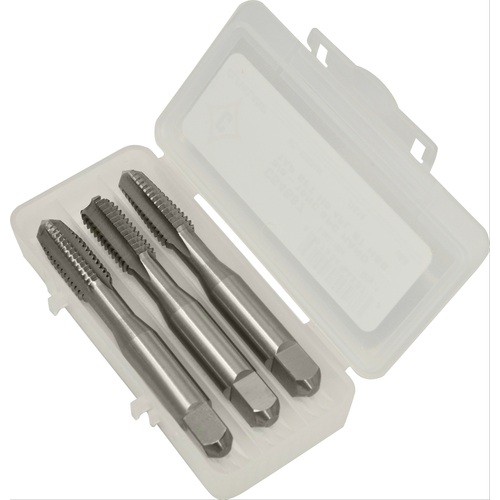

M4x0.7 3 Flute D4 HSS Standard Taper, Plug, and Bottoming Hand Tap Set- Bright
| Thread Diameter Size (TDZ) | M4 | Overall Length (OAL) | 2.13″ |
| Pitch in mm | 0.7 mm | Connection Diameter Machine Side (DCONMS) | 4.27 mm |
| Flute Type | Straight | Flute Count (NOF) | 4 |
| Thread Tolerance Class (TCTR) | D4 | 6H | Cutting Edge Material | HSS |
| Style | Taper|Plug|Bottoming | Quantity | 3 |
| Tool Type | Hand Taps | Measurement Type | Metric |
| Shank Type | Round w/ Drive Square | Series/List # | 1004 |
| Flute Length | 19 mm | Thread Cutting Part Length (THL) | 19.05 mm |
| Cutting Direction (HAND) | Right Hand | Thread Pitch (TP) | 0.7 mm |
| Coating | Uncoated | Thread Size | M4 × 0.7 |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.038
