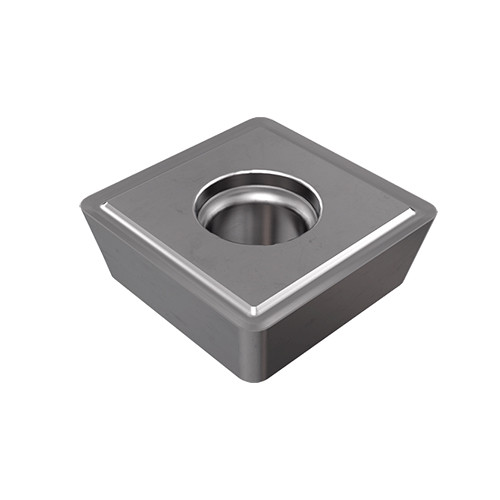

SOMX 070305-DT IC808
Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications.

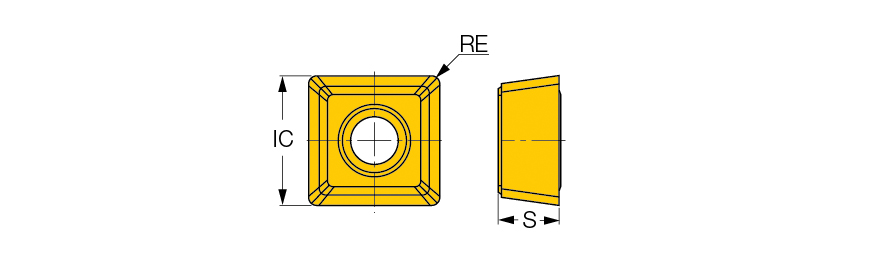

| Insert Thickness (S) | 0.142″ | Application | | Drill Mill | Drilling | |
| Inscribed Circle Diameter (IC) | 0.303″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0197″ | Cutting Edge Material | Carbide |
| Shape | Square | Tool Type | Indexable drilling inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Product Features
| Family Description | Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications. | Country of Origin | Israel |
| Remarks | DT - a general use chipformer for medium to high feed rates |
Shipping Info
LocalField10
0
Package Length
2.00000
Package Width
1.00000
Package Height
.50000
Package Weight
0.01
