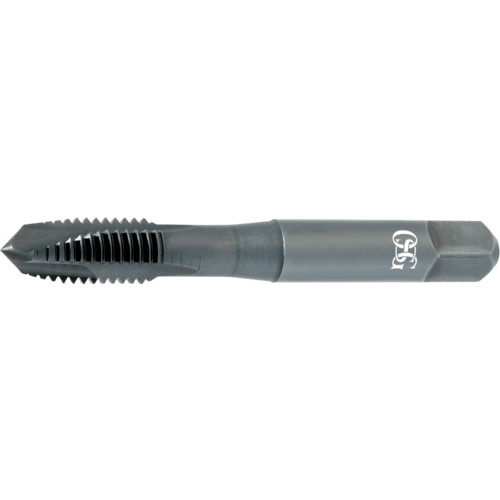

Tool Type | STI Tap | Hand Tap | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
Style | Plug | Chamfer | 4.5P-5.5P |
Thread Diameter Size (TDZ) | M8 | Coating | TiCN |
Thread Tolerance Class (TCTR) | D3 | Thread Pitch (TP) | 1.25 mm |
Thread Standard | Metric | Usable Length (LU) | 32 mm |
Thread Cutting Part Length (THL) | 17 mm | Measurement Type | Metric |
Overall Length (OAL) | 74 mm | Connection Diameter Machine Side (DCONMS) | 9.67 mm |
Cutting Edge Material | HSS-PM | Series/List # | 344STI |
End Shape | Spiral Point | Thread Size | M8 × 1.25 |
Flute Count (NOF) | 3 |
Product Features
Country of Origin | JP |
Shipping Info
Package Length
3.60000
Package Width
.60000
Package Height
.55000
Package Weight
0.085
