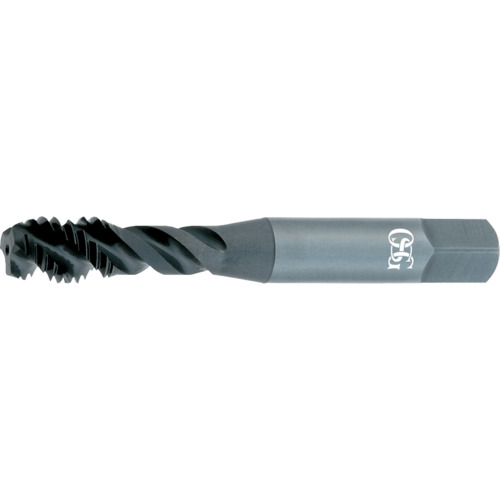

| Tool Type | STI Tap | Chamfer | 2.5P-3P |
| Style | Semi-Bottoming | Coating | Black Oxide |
| Thread Diameter Size (TDZ) | M6 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | D3 | Thread Pitch (TP) | 1 mm |
| Thread Standard | Metric | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 10 mm | Usable Length (LU) | 29 mm |
| Overall Length (OAL) | 69 mm | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Flute Count (NOF) | 3 | Series/List # | 343STI |
| Applicable Material | | Steel | Stainless Steel | | Thread Size | M6 × 1 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
3.60000
Package Width
.50000
Package Height
.45000
Package Weight
0.05
